Model AL-HD

Autowlift Specifications & Pricing

Built stronger, priced smarter.

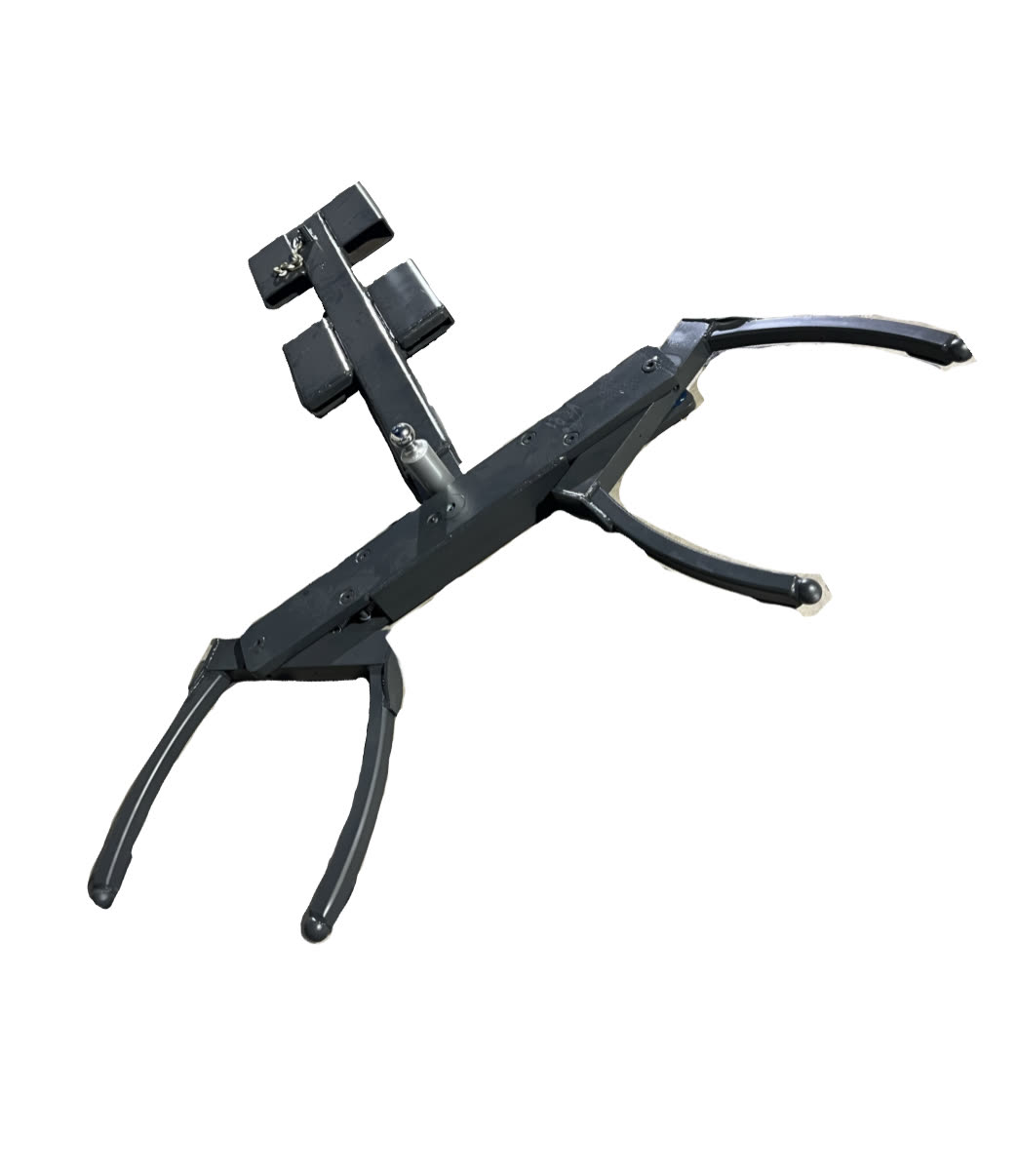

Autowlift AL-HD forklift attachment shown from the side against a white background
Model AL-HD
$4,500

Complete attachment, ready to put on your forks.

What’s Included at $4,500

  • The Autowlift attachment (Model AL-HD)
  • 2 ratchet straps
  • All necessary hardware
  • Ball hitch attachment
  • 1-year parts warranty
Request Your Quote
The Numbers

Full Specifications

Everything you need to check it against your forklift before you order.

Autowlift Model AL-HD specifications
SpecDetail
ModelAL-HD
Rated Lift Capacity4,000 lbs
Fork Tube Dimensions2 3/8" × 6 1/4" (inside measurement)
Center Tube Length67"
Total Reach70"
Attachment Weight291 lbs
Effective Thickness4.1875"
Forklift RequirementMinimum 4,000 lb lift capacity

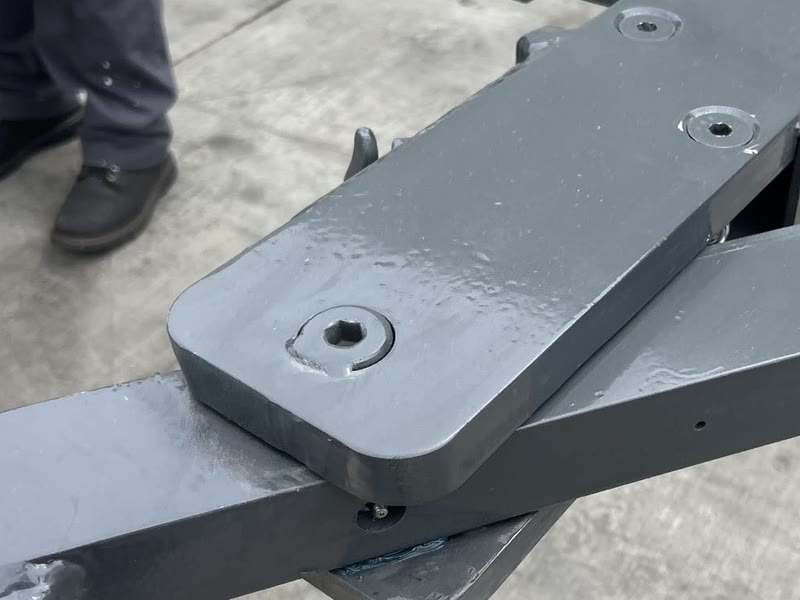

Smooth top surface of the Autowlift arm with countersunk fasteners
A smooth top with flush hardware — no bolts or pins sticking out.

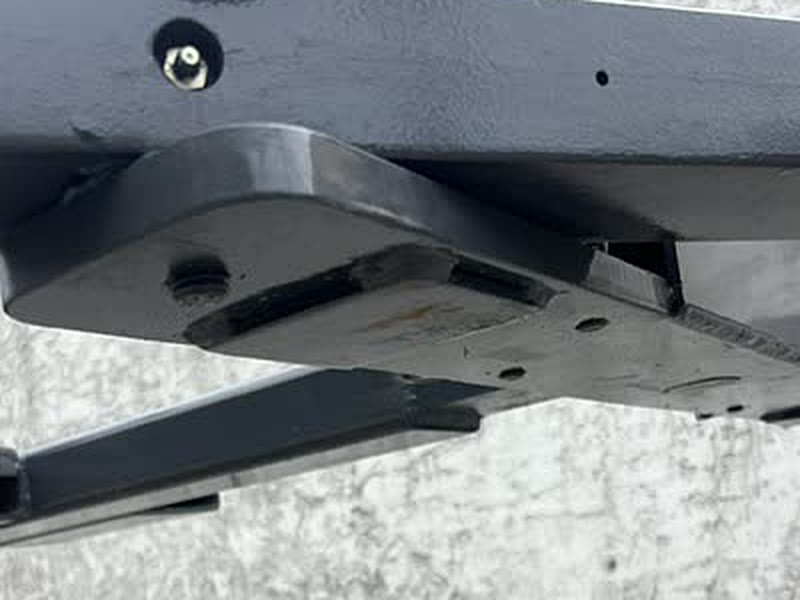

Underside of the Autowlift frame showing a worn steel skid plate
Underneath — replaceable skid plates take the wear against the pavement.

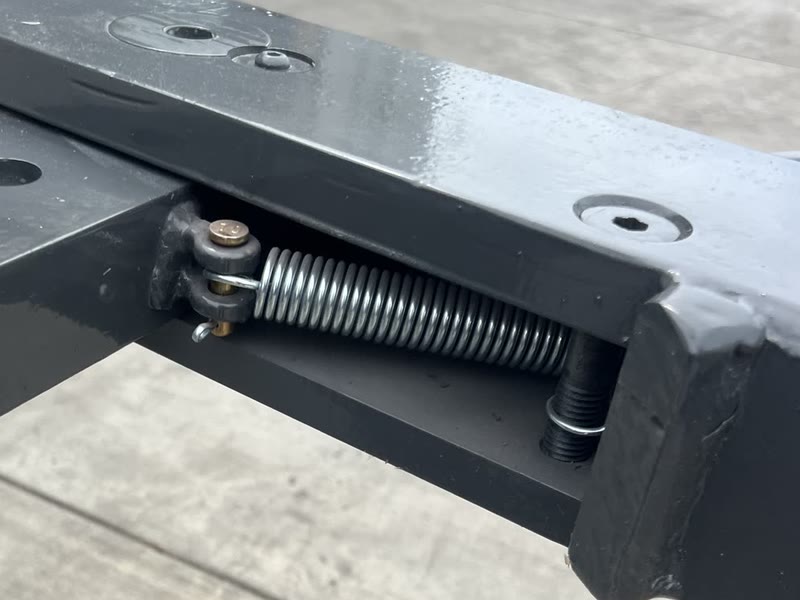

Internal return spring protected inside the Autowlift steel frame
Springs sit inside the frame — nothing exposed to snag.

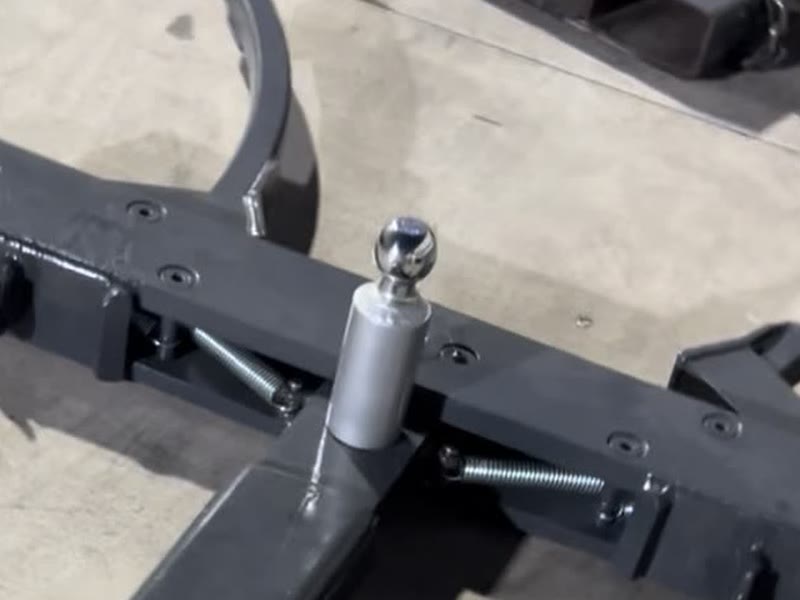

Ball hitch attachment fitted to the Autowlift center tube
The included ball hitch drops in for trailers and boats.
Keep It Running

Replacement Parts

Wear parts are meant to be replaced — so we keep them on the shelf.

Autowlift replacement part pricing
PartPrice
Full 6-Bearing Set$250
Spring Set (4 springs)$50
Skid PlatesPrice coming soon
BushingsPrice coming soon
Center BearingPrice coming soon
Claw BearingPrice coming soon
Claw SpringPrice coming soon
Head SpringPrice coming soon

All replacement parts are kept in stock and ready to ship — no long wait times when you need a part replaced. Need a price that isn’t listed yet? Email us and we’ll quote it directly.

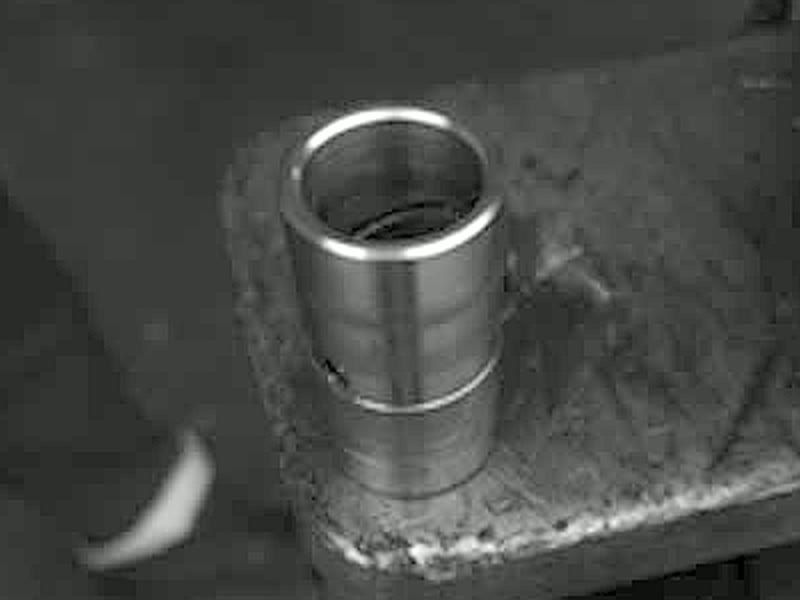

Machined bushing used in the Autowlift pivot assembly
Bushings — machined in house and replaceable at the bench.

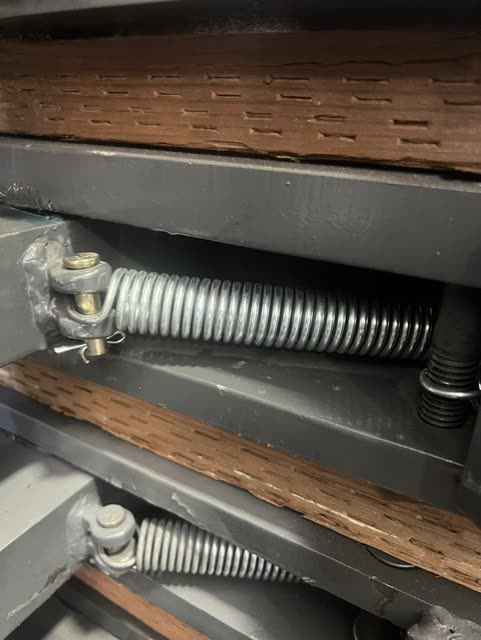

Return springs fitted inside the steel frame of stacked Autowlift units
Spring set — four springs, bolt-in, $50 for the set.

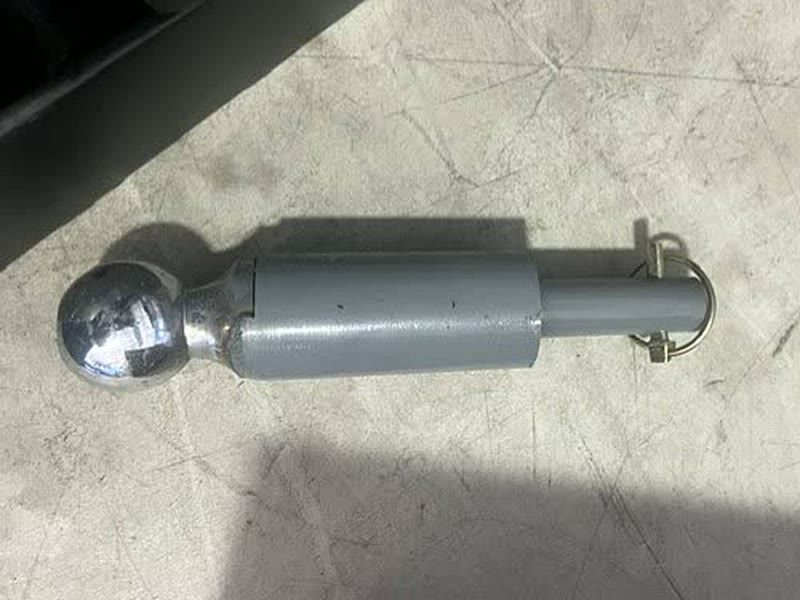

Autowlift drop-in ball hitch attachment with retaining pin
The drop-in ball hitch, included with every attachment.

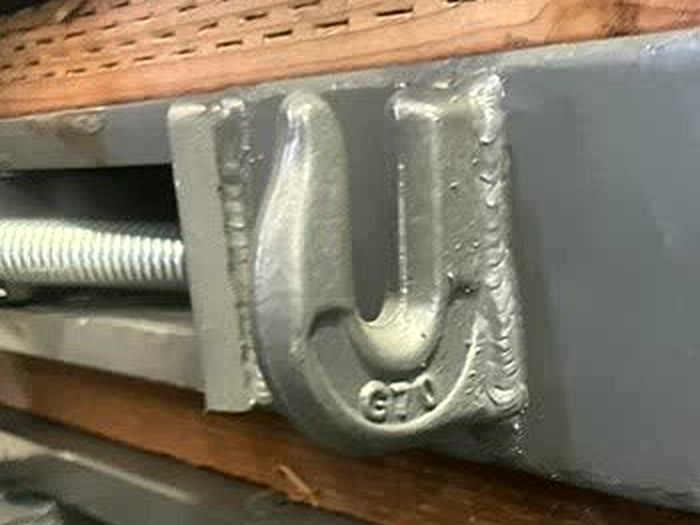

Welded chain hook on the fork pocket of an Autowlift attachment
Welded chain hook — where the attachment locks to your forks.

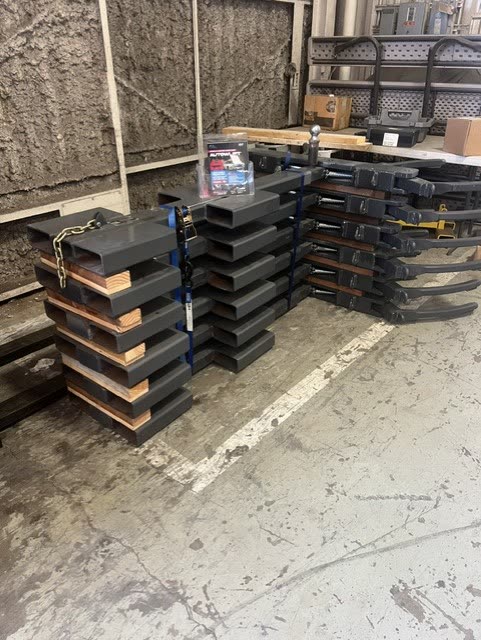

Finished Autowlift attachments and arm assemblies stacked in the Hawthorne shop

Serviceable by design

The bearings have grease fittings, the springs are bolt-in, and the skid plates come off with hand tools. Nothing is pressed in, potted, or sealed shut to force a whole-unit replacement — you service the Autowlift in your own shop and put it straight back to work.

  • Grease fittings on serviceable bearings
  • Bolt-in springs and skid plates
  • Parts stocked in Hawthorne, not back-ordered overseas
Next Step

Ready to Get Your Autowlift?

Send us your details and we’ll confirm pricing, lead time, and freight to your yard.

Request Your Quote Watch It In Action
